LF1740-B4 (1.6*4.0m/5*13ft) Customized Flatbed Laminator

Model: LF1740-B4 Customized Flatbed Applicator
Max Lamination Width: 1600mm/5.24ft
Max Lamination Length: 4000mm/13.12ft
Max Lamination Thickness: 50mm/1.96”
Lamination Temp: 0~60°C/0~140°F
Roller Up and Down: Pneumatic Pressure.

Send E-mail Get Price
Main Features Technical Parameter Related Products Inquiry

Main Features

  • 001
  • 002

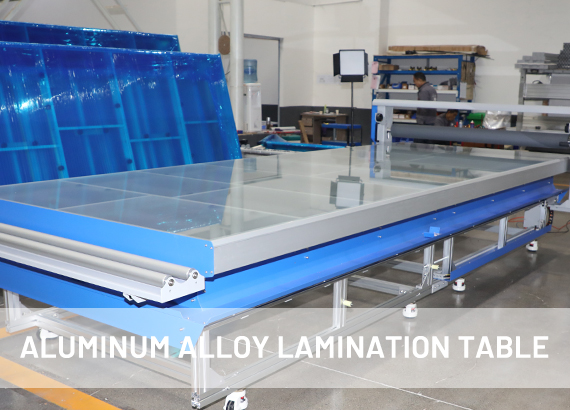

  • 003



  • 01LeFu LF1740-B4 customized size flatbed applicator is a state-of-the-art lamination machine designed for superior performance, user convenience, and versatility. Featuring a user-friendly intelligent front LCD control panel, this machine simplifies lamination adjustments, allowing operators to easily control temperature and pressure settings. Its intuitive interface makes setup quick and easy, making it an excellent choice for both seasoned professionals and newcomers alike in high-volume environments.
  • 004
  • 005
  • 006



  • 02Equipped with a rear media roll holder, LF1740-B4 customized size flatbed applicator ensures smooth and efficient lamination by securely holding films in place. Its innovative tilt table design optimizes space during material handling, while the durable safety glass construction adds reliability and longevity. This flatbed applicator guarantees high-quality, bubble-free laminates that deliver a flawless finish, providing essential protection to your materials.



Technical Parameter

Model

LF1740-B4 Customized Flatbed Warm Laminator
Lamination Type
Warm & Cold

Lamination Temp

0~60°C/0~140°F

Max Lamination Width (mm/inches)

1600mm (62.99''/5.24ft)
Max Lamination Length (mm/inches)
4000mm (157.48”/13.12ft)
Table Size (mm/inches)
1700mm(66.92”/5.57ft)*4200mm(165.35”/13.77ft)
Max Lamination Thickness (mm/inches)
50mm/1.96''

Laminating Type

Flat Mounting
Heating Roller
Top

Roller

Silicon

Diameter of Roller (mm/inches)

130mm/5"

Pressure/Height Adjust

Pneumatic
Working Type
Manual

Certificate

CE, RCM, ROHS

Heating

Infrared

Preheating Time

10-15 min
Voltage
110V/220V 50/60Hz
Working Size (mm/inches)
4500*2030*1235mm( 14.7*6.6*4ft)
Package Size (mm/inches)
42500*1200*2100=6.3CBM*2Sets (8.2*3.9*6.8ft)*2Sets

Weight (kgs/lbs)

N.W: 600kgs (1322lbs)  G.W: 800kgs (1763lbs)
